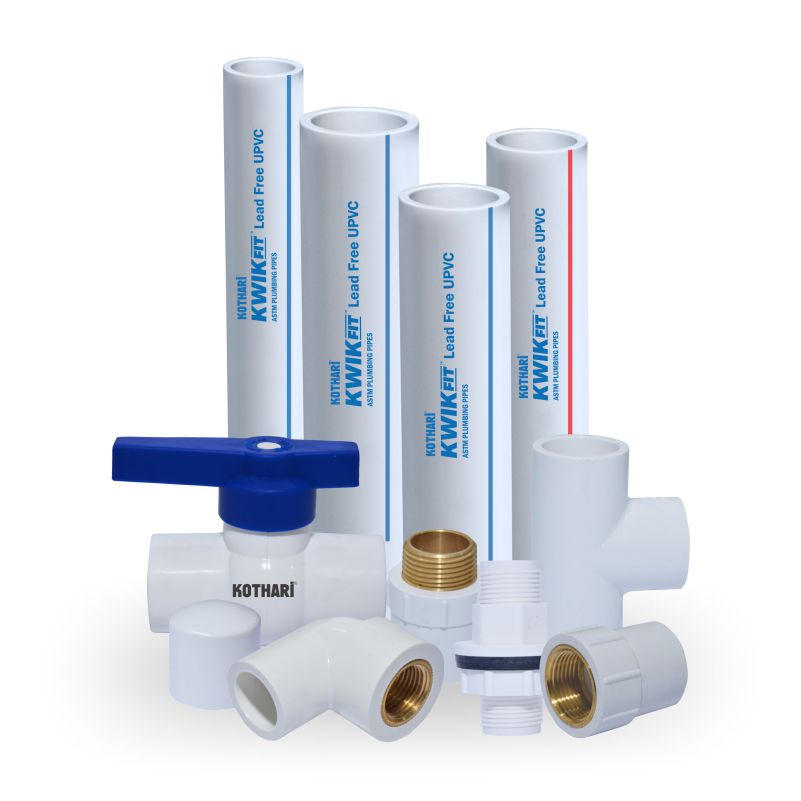

UPVC Pipes & Fittings

Kothari Group Supplies lead-free UPVC solvent weld plumbing systems, which are a true Engineer’s delight and ideal for cold water plumbing applications. UPVC pipes are made up of highest grade quality resin. These pipes & fittings are used for water supply in agriculture, drip irrigation & sprinkler lines as well as for drinking water distribution.Kothari is a leading manufacturer in India for uPVC pipes with more than 500 dealers all over india. UPVC pipes also can be used in cable ducting, ventilation pipelines & slurry lines. One end of this pipe is self-socketed and therefore the other is obvious. It allows a snug fit, without the use of any couplers. The strong solvent cement joint is permanent and trouble-free. This eliminates the inconvenience of loose couplers and thereby saves both time and price.

UPVC Pipes & Fittings

    Features and Benefits:
  • Lead-free material ensures safe drinking water.
  • High impact resistance ensures high quality performance at lower temperatures.
  • Fast & easy installation, Saves labour & Long life.
  • Self-extinguishing. Does not support combustion.
  • Exceptional corrosion resistance ensures constant flow over lifetime.
  • Light weight but strong.
    Applications:
  • Indoor & outdoor use for hot & cold water application (operating 0 temperature up to 45 C only.
  • Residential complexes, commercial buildings, Public utilities, swimming pools.
  • RO & DM water plants.
  • For concealed, down take & terrace looping.
    Available Sizes:
  • Pipes – ½”to 6” & Fittings – ½”to 4”
Technical Specifications:
Dimensions & Working
Pressure for Pipes (Solvent Weld) at 23℃
Nominal Bore
Outside Diameter
Schedule 40
Schedule 80
Wall Thickness
Working Pressure
Wall Thickness
Working Pressure
(Inch)
(mm)
(mm)
(kg/cm )
(mm)
(kg/cm )
1/2
21.34 (+/- 0.10)
2.77 + 0.51
42.20
3.73 + 0.51
59.75
3/4
26.67 (+/- 0.10)
2.87 + 0.51
33.75
3.91 + 0.51
48.50
1
33.40 (+/- 0.13)
3.38 + 0.51
31.60
4.55 + 0.53
44.25
1 1/4
42.16 (+/- 0.13)
3.56 + 0.51
26.00
4.85 + 0.58
36.60
1 1/2
48.26 (+/- 0.15)
3.68 + 0.51
23.25
5.08 + 0.61
33.00
2
60.32 (+/- 0.15)
3.91 + 0.51
19.65
5.54 + 0.66
28.10
2 1/2
73.02 (+/- 0.18)
5.16 + 0.61
21.10
7.01 + 0.84
29.55
3
88.90 (+/- 0.20)
5.49 + 0.66
18.25
7.62 + 0.91
26.00
4
114.30 (+/- 0.23)
6.02 + 0.71
15.50
8.56 + 1.02
22.50
6
168.28 (+/- 0.28)
7.11 + 0.86
12.60
10.97 + 1.32
19.65
Pressure for Fittings (Solvent Weld) at 23 C
Nominal Bore
Schedule 40
Schedule 80
Working Pressure
Working Pressure
(Inch)
(kg/cm )
(kg/cm )
1/2
25.30
35.85
3/4
20.25
29.10
1
18.95
26.55
1 1/4
15.60
21.95
1 1/2
13.95
19.80
2
11.75
16.85
2 1/2
–
17.70
3
–
15.60
4
–
13.50
