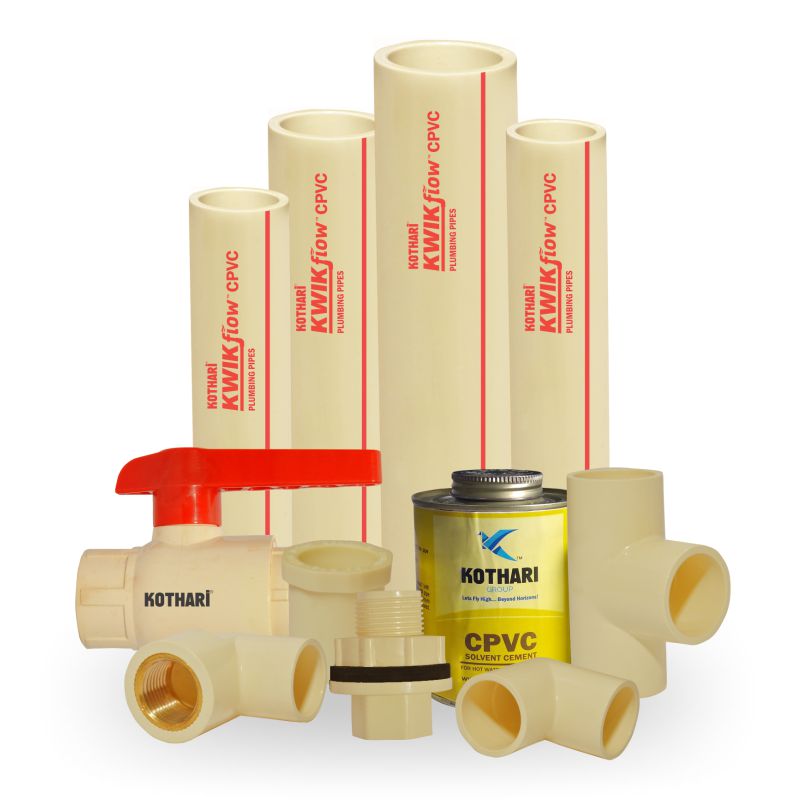

Kothari is a Leading Supplier of CPVC (Chlorinated Polyvinyl Chloride) hot and cold water systems in India. CPVC Kothari plumbing is meant for decent & Coldwater which is suitable for all plumbing and potable water application. The recent and cold performance ranges from 0° C to 93°C. The corrosion resistance property makes it usable altogether weather & ensures constant flow over a lifetime. Kothari CPVC Pipes are an excellent solution for GI (galvanized iron) pipes and also we have got a comprehensive range of CPVC pipes and fittings will fulfil your every demanding application. We provide cost-effective and versatile lead-free CPVC pipes and UPVC pipes.
Dimensions
|
As per IS 15778
|
|||||||||
---|---|---|---|---|---|---|---|---|---|---|
Nominal Bore
|
Outside Diameter
|
SDR – 11
|
SDR – 13.5
|
|||||||
Wall Thickness
|
Working Pressure
|
Wall Thickness
|
Working Pressure
|
|||||||
(Inch)
|
(mm)
|
(mm)
|
Min
(mm) |
Max
(mm) |
At 27℃
(kg/cm ) |
At 82℃
(kg/cm ) |
Min
(mm) |
Max
(mm) |
At 27℃
(kg/cm ) |
At 82℃
(kg/cm ) |
1/2
|
15
|
15.90 (+/- 0.10)
|
1.70
|
2.20
|
28.14
|
6.93
|
1.40
|
1.90
|
22.22
|
5.60
|
3/4
|
20
|
22.20 (+/- 0.10)
|
2.00
|
2.50
|
28.14
|
6.93
|
1.70
|
2.20
|
22.22
|
5.60
|
1
|
25
|
28.60 (+/- 0.10)
|
2.60
|
3.10
|
28.14
|
6.93
|
2.10
|
2.60
|
22.22
|
5.60
|
1 1/4
|
32
|
34.90 (+/- 0.10)
|
3.20
|
3.70
|
28.14
|
6.93
|
2.60
|
3.10
|
22.22
|
5.60
|
1 1/2
|
40
|
41.30 (+/- 0.10)
|
3.80
|
4.30
|
28.14
|
6.93
|
3.10
|
3.60
|
22.22
|
5.60
|
2
|
50
|
54.00 (+/- 0.10)
|
4.90
|
5.50
|
28.14
|
6.93
|
4.00
|
4.60
|
22.22
|
5.60
|
Dimensions
|
As per ASTM F 441
|
|||||||||
---|---|---|---|---|---|---|---|---|---|---|
Nominal Bore
|
Outside Diameter
|
Schedule 40
|
Schedule 80
|
|||||||
Wall Thickness
|
Working Pressure
|
Wall Thickness
|
Working Pressure
|
|||||||
(Inch)
|
(mm)
|
(mm)
|
Min
(mm) |
Max
(mm) |
At 27℃
(kg/cm ) |
At 82℃
(kg/cm ) |
Min
(mm) |
Max
(mm) |
At 27℃
(kg/cm ) |
At 82℃
(kg/cm ) |
2 1/2
|
65
|
73.00 (+/- 0.18)
|
5.16
|
5.77
|
21.10
|
5.30
|
7.01
|
7.85
|
29.57
|
7.53
|
3
|
80
|
88.90 (+/- 0.20)
|
5.49
|
6.15
|
18.25
|
4.58
|
7.62
|
8.53
|
26.00
|
6.32
|
4
|
100
|
114.30 (+/- 0.23)
|
6.02
|
6.73
|
15.49
|
3.87
|
8.56
|
9.58
|
22.53
|
5.60
|
